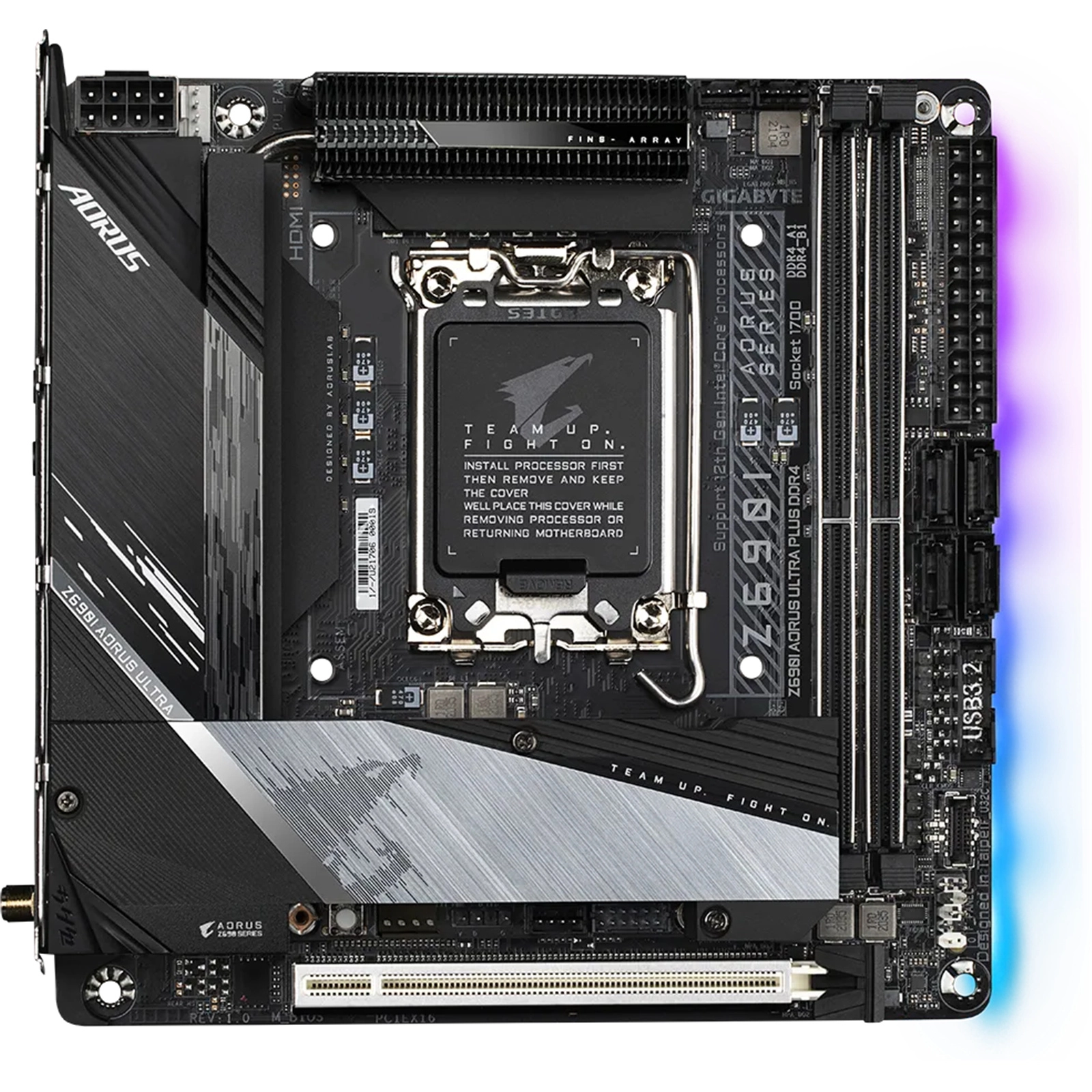

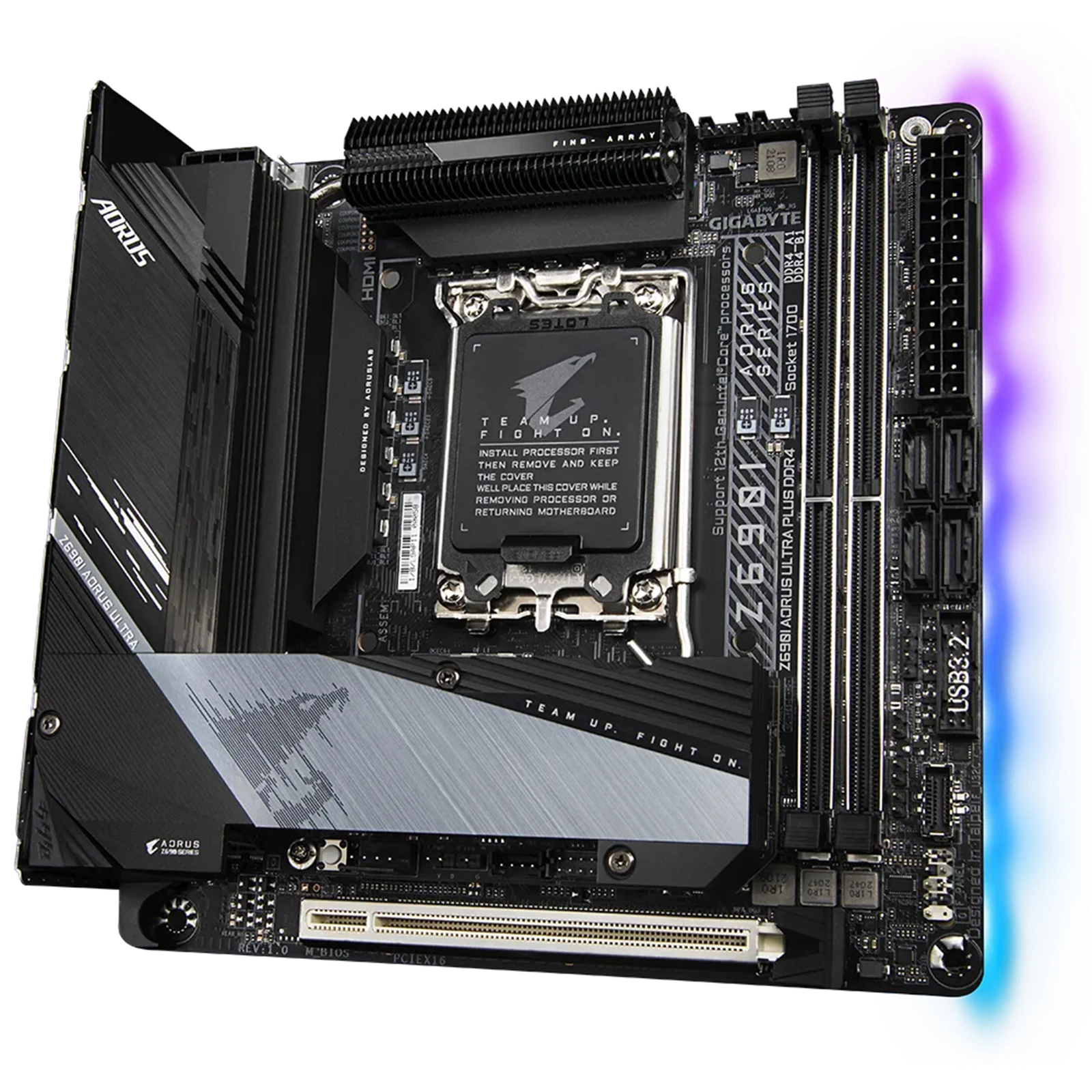

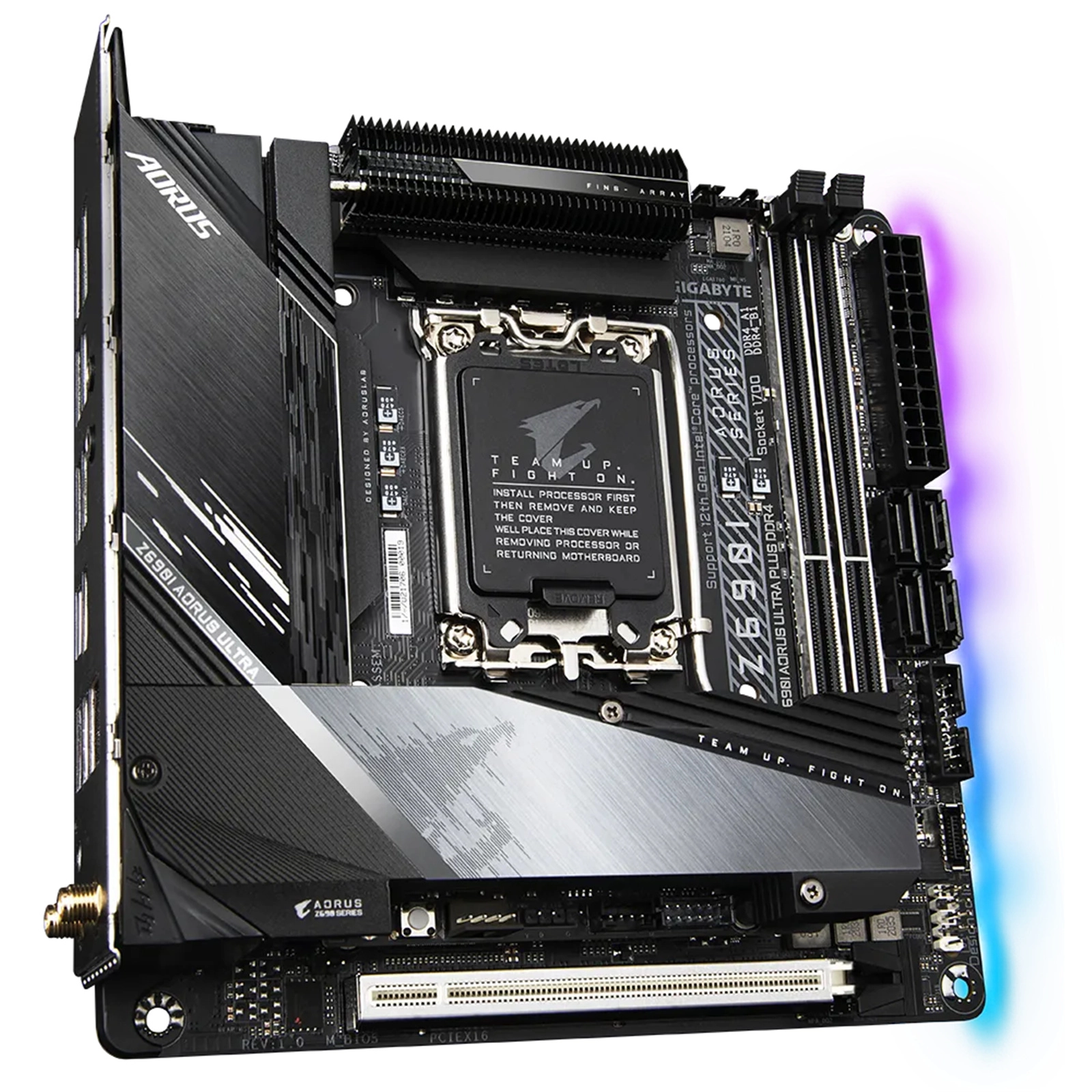

Gigabyte Z690I AORUS ULTRA PLUS DDR4 ITX Motherboard

N/A

LGA1700 socket: Support for 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors*
L3 cache varies with CPU

(Please refer to "CPU Support List" from Gigabyte's website for more information.)

Integrated Graphics Processor-Intel® HD Graphics support:
1 x HDMI port, supporting a maximum resolution of 4096x2160 @ 60 Hz
^{Support for HDMI 2.1 version and HDCP 2.3
Support native HDMI 2.1 TMDS compatible ports}

1 x DisplayPort port, supporting a maximum resolution of 5120x2160 @ 60 Hz

^{Support for DisplayPort 1.4 version and HDCP 2.3
NB: The DisplayPort does not support HDMI connection by adapter.
(Graphics specifications may vary depending on CPU support.)}

Realtek® ALC4080 CODEC
Support for DTS:X® Ultra
High Definition Audio
2-channel.

LAN:

Intel® Wi-Fi 6E AX411
WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
BLUETOOTH 5.2
Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
^{NB: Actual data rate may vary depending on environment and equipment.}

^{Does not support system Wake-on-WLAN from hibernation (S4)}

CPU:
1 x M.2 connector on the back of the GC-Z690I BTB PLUG (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
1 x M.2 connector on the front of GC-Z690I BTB PLUG (Socket 3, M key, type 2242/2260/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
4 x SATA 6Gb/s connectors
Support for RAID 0, RAID 1, RAID 5, and RAID 10

Intel® Optane™ Memory Ready

^{System acceleration with Intel® Optane™ Memory can only be enabled on the M.2 connectors supported by the Chipset.}

1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x external power connector(Note 1)
1 x CPU fan header
1 x water cooling CPU fan header
2 x system fan headers(SYS_FAN1/SYS_FAN2(Note 1))
1 x addressable LED strip header(Note 1)
1 x RGB LED strip header
2 x M.2 Socket 3 connectors(M2A_CPU(Note 2)/M2P_SB(Note 1))
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header(routed from the adapter card on the rear panel)
1 x speaker header
1 x USB Type-C® header, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 1 header
1 x USB 2.0/1.1 header(Note 1)
1 x reset button(Note 1)
1 x reset jumper
1 x Clear CMOS jumper
^{NB: All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W.}

^{(Note 1) The connector is on the front of GC-Z690I BTB PLUG.
(Note 2) The connector is on the back of GC-Z690I BTB PLUG}

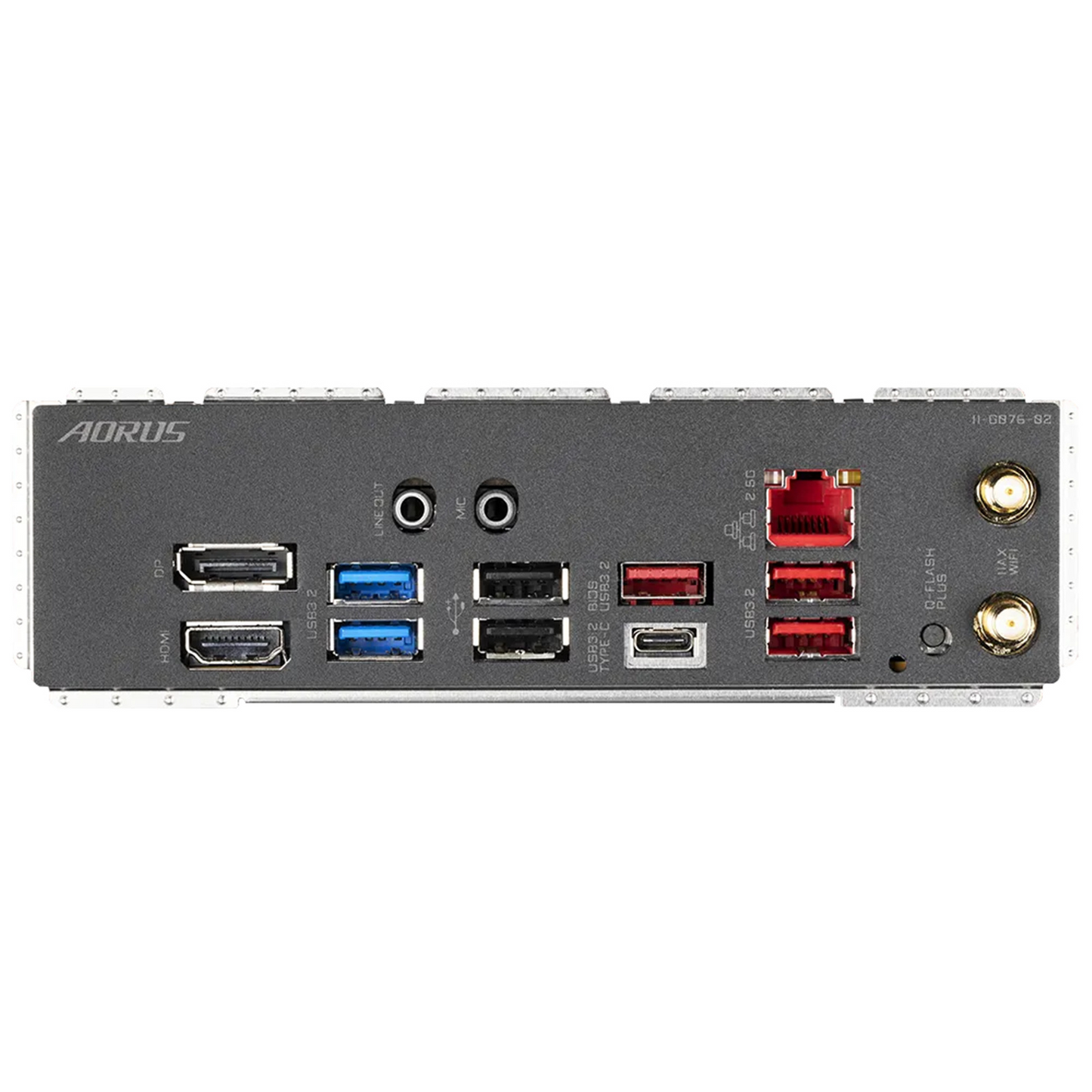

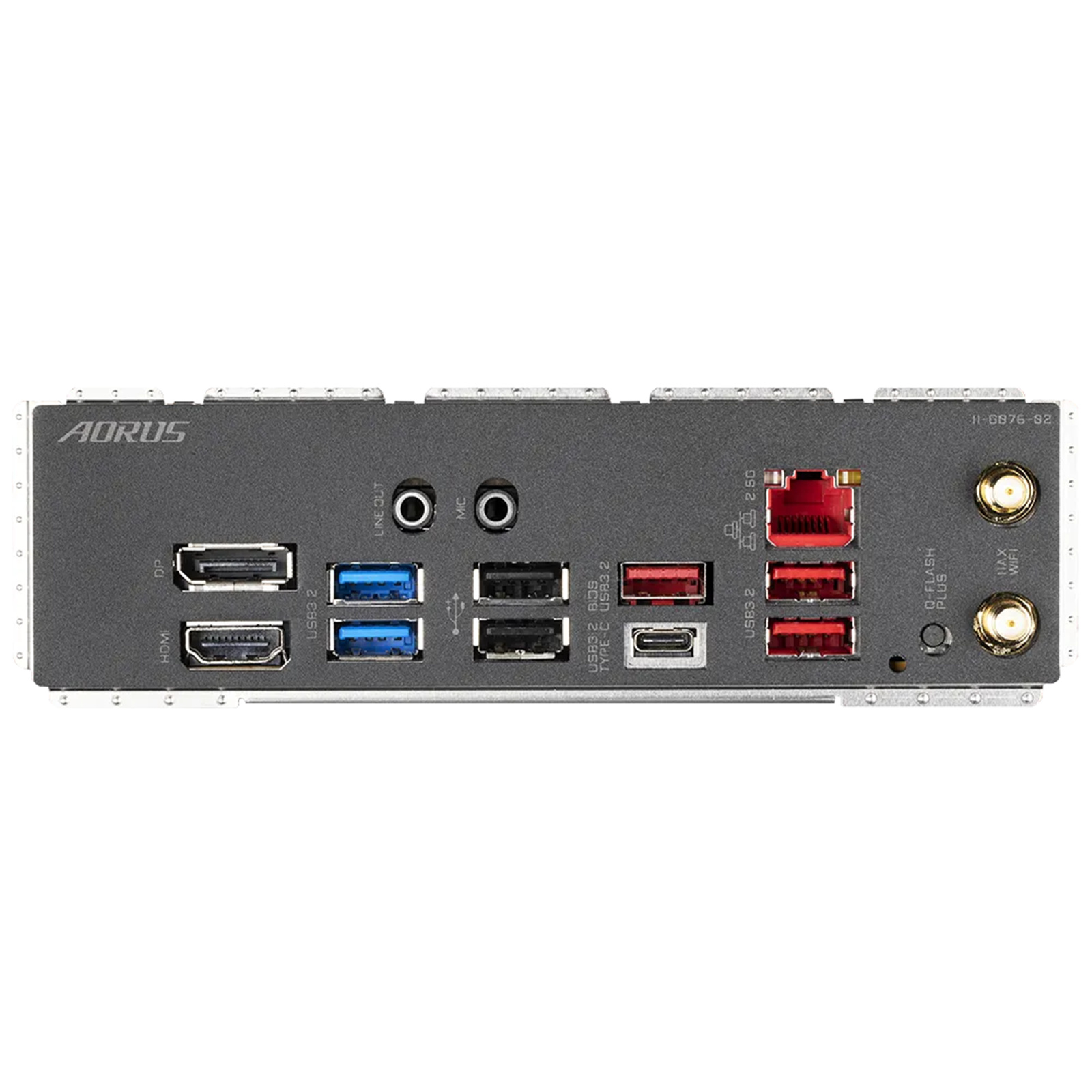

2 x SMA antenna connectors (2T2R)
1 x DisplayPort
1 x HDMI port
1 x USB Type-C® port, with USB 3.2 Gen 2x2 support
3 x USB 3.2 Gen 2 Type-A ports (red)
2 x USB 3.2 Gen 1 ports
2 x USB 2.0/1.1 ports
1 x Q-Flash Plus button
1 x RJ-45 port
2 x audio jacks
