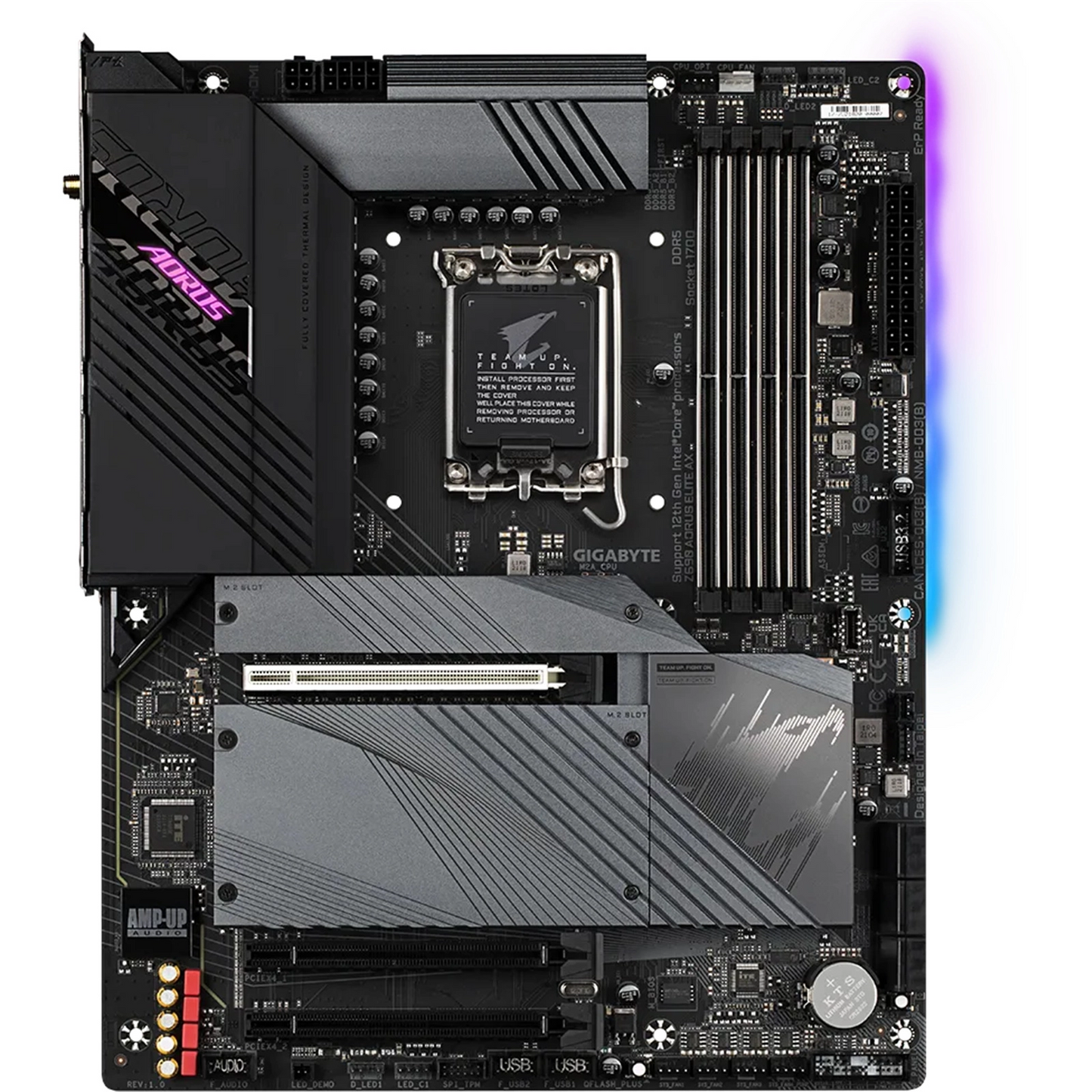

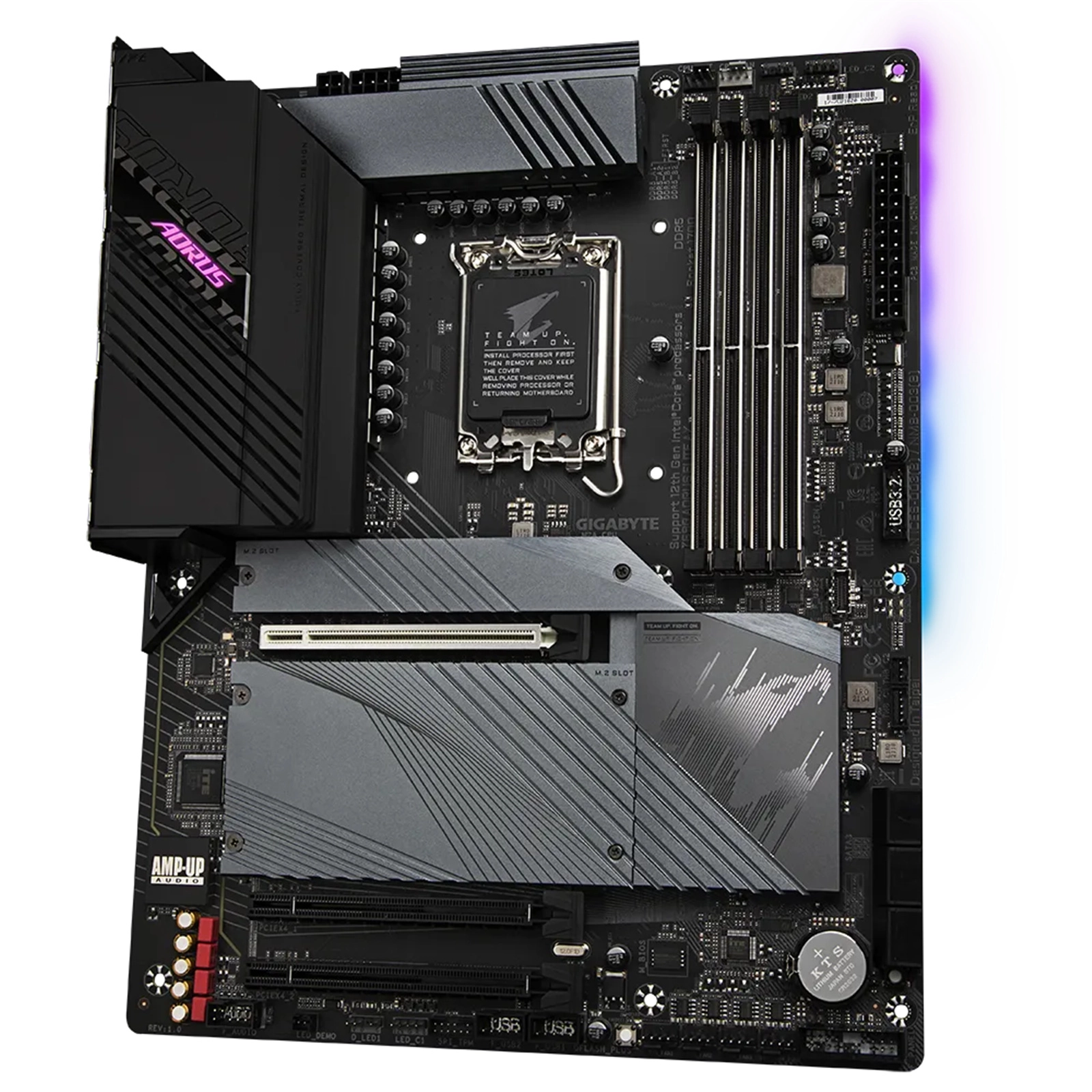

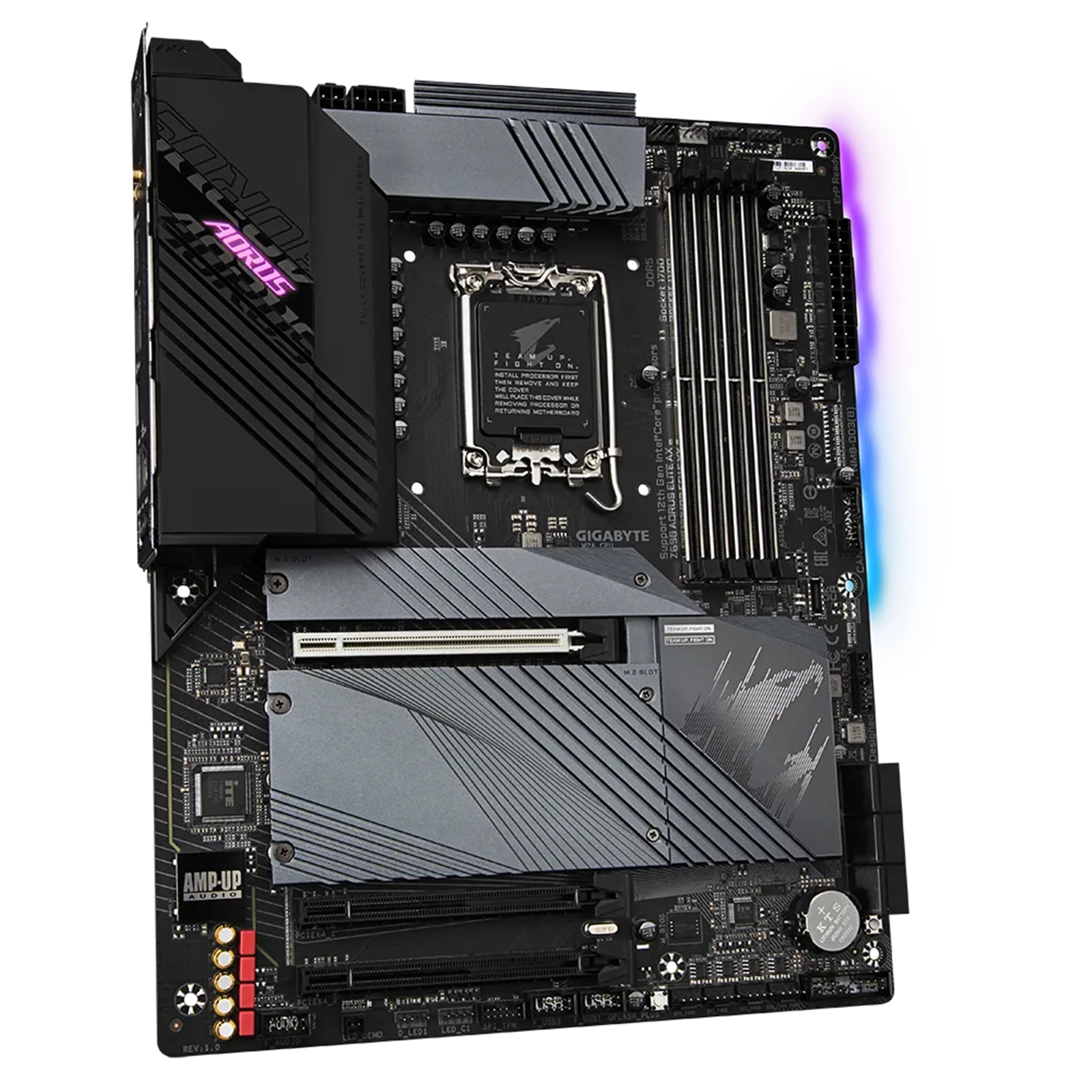

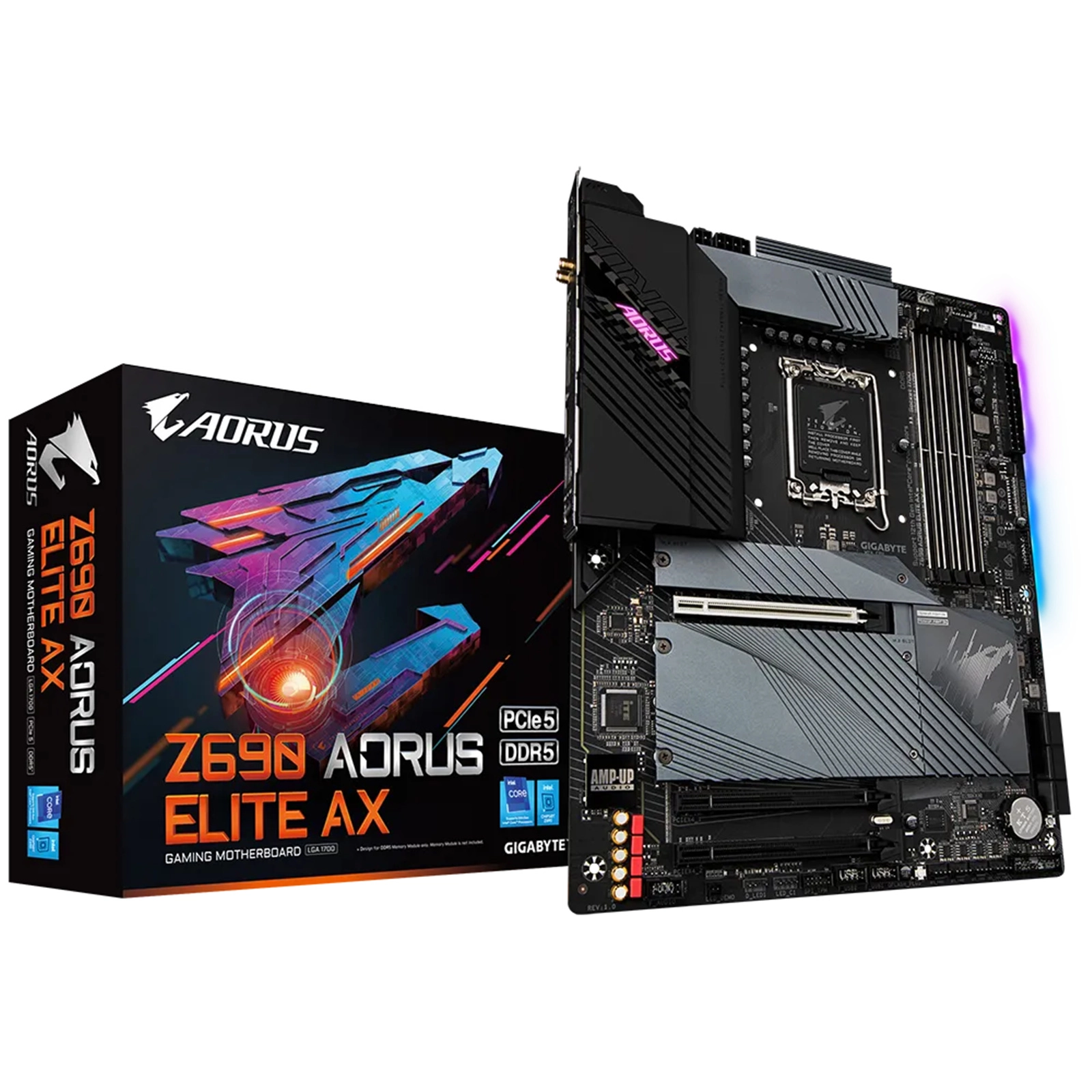

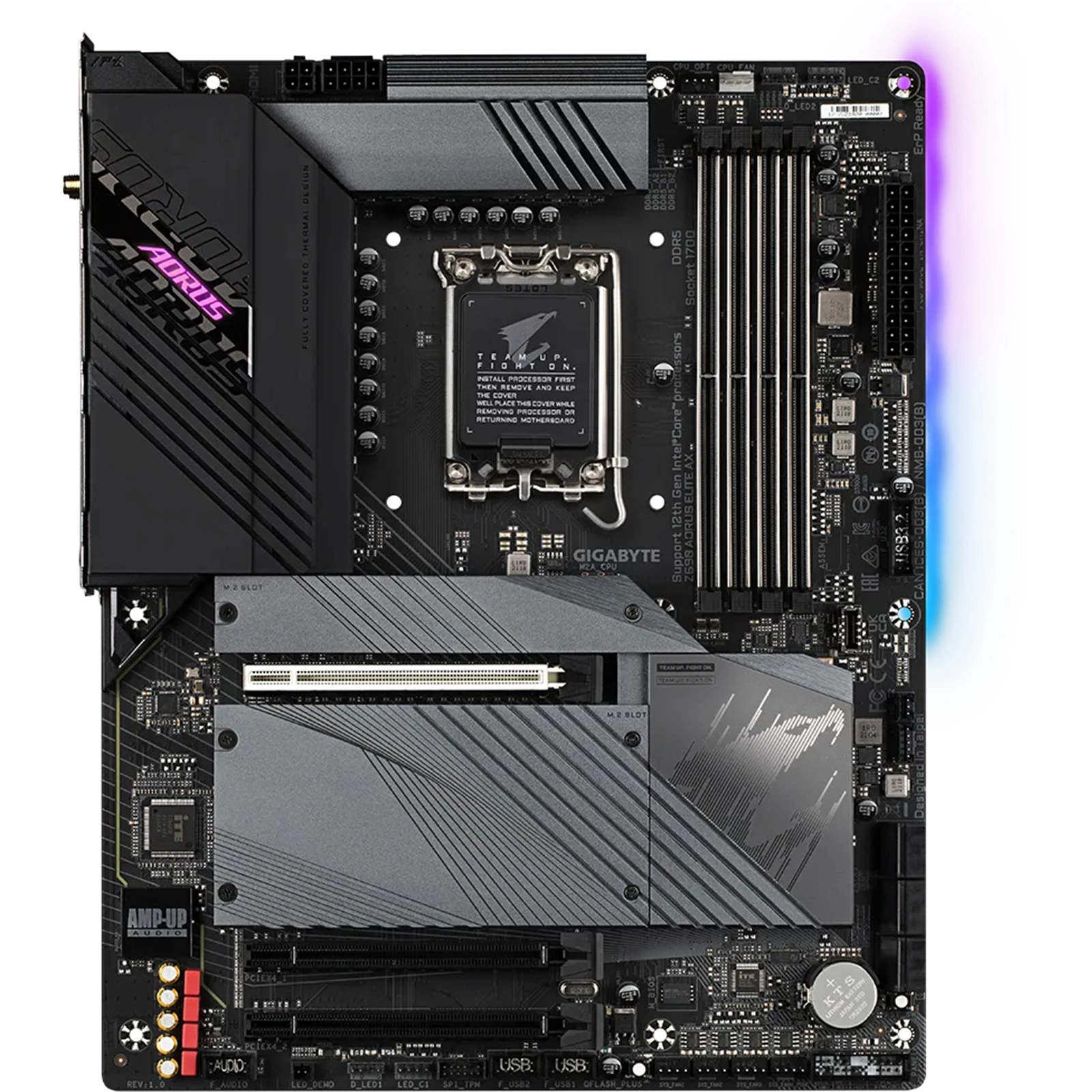

Gigabyte Z690 AORUS ELITE AX ATX Motherboard
Gigabyte Z690 AORUS ELITE AX ATX Motherboard
Gigabyte
Couldn't load pickup availability
General Product Specifications:
Form Factor: | ATX |
MB Socket: | Intel LGA 1700 |
Wi-Fi: | Yes |
Chipset: | Z690 |
Multi GPU Support: | Crossfire |
Memory Type: | DDR5 |
PCIE x16 Slots: | 3 |
PCIE x8 Slots: | N/A |
PCIE x4 Slots: | N/A |
PCIE x2 Slots: | N/A |
PCIE x1 Slots: | N/A |
PCI Slots: | N/A |
4 Pin RGB Header: | 2 Headers |
3-Pin A_RGB Header: | 2 Headers |
M.2 Connectors: | 4 |
RAID Support: | RAID 0, 1, 5, 10 |
Warranty: | 12 months |
Extra Specifications:
MPN or P/N: | Z690 AORUS ELITE AX MBDGBM60526 |
CPU: | LGA1700 socket: Support for 12th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors (Go to GIGABYTE's website for the latest CPU support list.) L3 cache varies with CPU (Please refer to "CPU Support List" from Gigabyte's website for more information.) |
Chipset: | Intel® Z690 Express Chipset |
Memory: | Support for DDR5 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MHz memory modules 4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (Please refer "Memory Support List" from Gigabyte's website for more information.) |
Onboard Graphics: |
Integrated Graphics Processor-Intel® HD Graphics support: 1 x DisplayPort, supporting a maximum resolution of 4096x2304 @ 60 Hz Support for DisplayPort 1.2 version and HDCP 2.3 |
Audio: |
Realtek® ALC1220-VB CODEC High Definition Audio Actual output of digital signals may vary depending on the playback content and software used, and an external DAC is required. |
LAN: | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
Wireless Communication module: | Intel® Wi-Fi 6 AX201: WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz Dual-Band BLUETOOTH 5.2 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate NB: Actual data rate may vary depending on environment and equipment |
Expansion Slots: |
1 x PCI Express x16 slot, running at x16 (PCIEX16.) For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. (The PCIEX16 slot conforms to PCI Express 5.0 standard.) |
Multi-Graphics Technology: | Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies |
Storage Interface: |
CPU:
|
USB: | Chipset: 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2x2 support 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) Chipset+2 USB 2.0 Hub: 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) |
Internal I/O Connectors: | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector 1 x CPU fan header 1 x water cooling CPU fan header 3 x system fan headers 1 x system fan/water cooling pump header 2 x addressable LED strip headers 2 x RGB LED strip headers 4 x M.2 Socket 3 connectors 6 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 2 x Thunderbolt™ add-in card connectors 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x reset button 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper NB: All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W. |

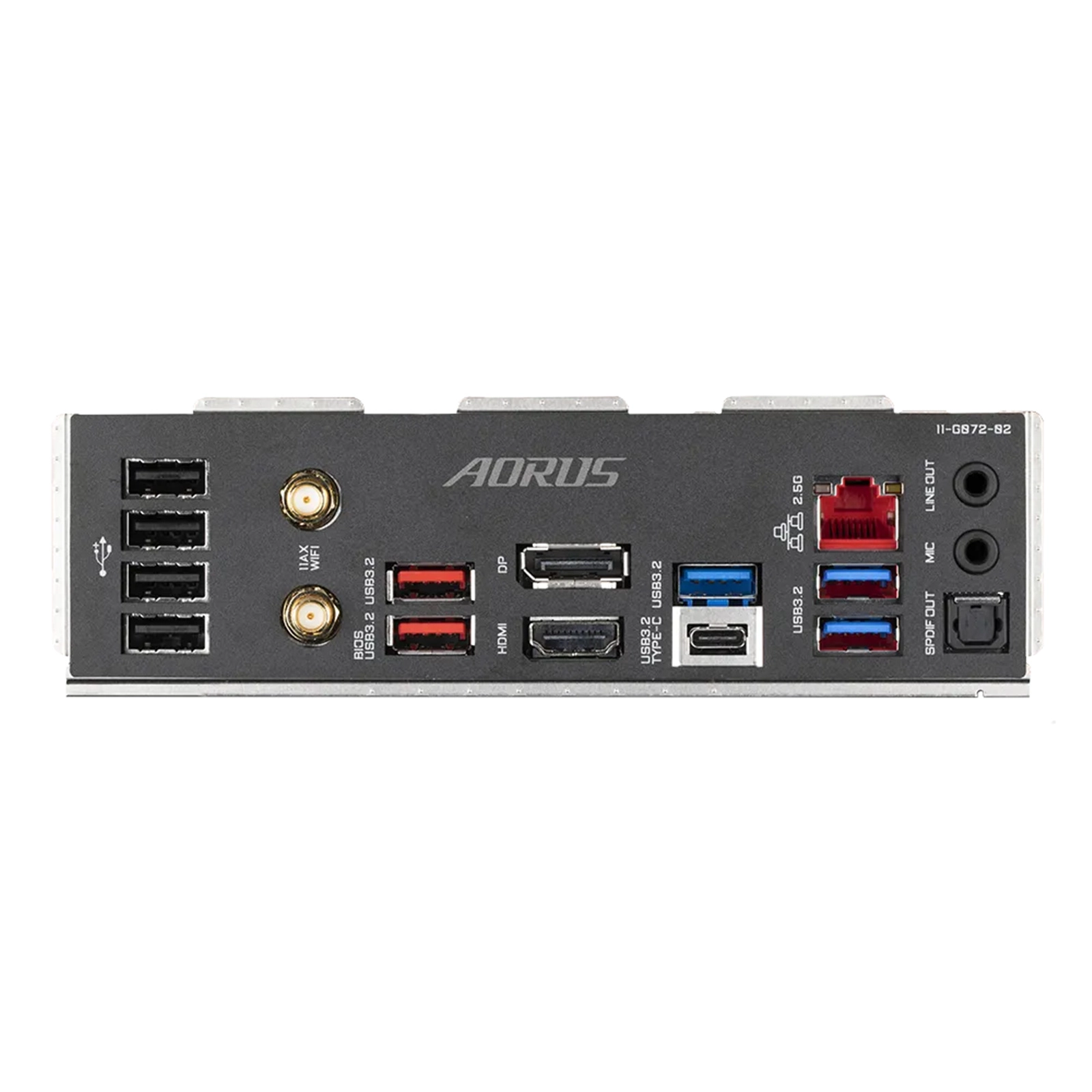

Back Panel Connectors: |
1 x USB Type-C® port, with USB 3.2 Gen 2x2 support 2 x USB 3.2 Gen 2 Type-A ports (red) 3 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 2 x SMA antenna connectors (2T2R) 1 x HDMI port 1 x DisplayPort 1 x RJ-45 port 1 x optical S/PDIF Out connector 2 x audio jacks |
I/O Controller: | iTE® I/O Controller Chip |
H/W Monitoring: | Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install. Noise detection |
BIOS: |
1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
Unique Features: | Support for APP Center NB: Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS EasyTune Fast Boot Game Boost ON/OFF Charge RGB Fusion Smart Backup System Information Viewer Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install |
Bundled Software: |
Norton® Internet Security (OEM version) Realtek® Gaming LAN Bandwidth Control Utility |
Operating System: |
Support for Windows 11 64-bit Support for Windows 10 64-bit |
Form Factor: | ATX Form Factor; 30.5cm x 24.4cm |
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period. All warranties are return to base unless otherwise specified
